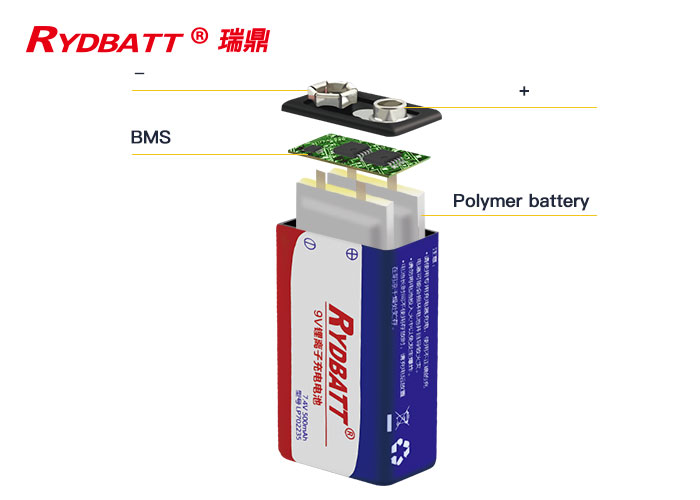

RYDBATT 9V 6F22 2S1P Li Polymer Battery Pack / 7.4V 500mAh PCM
Lithium Ion Polymer Cell
Battery rated performance:
| No | Item | Rated performance | Remark |
1 | Rated capacity | 500mAh-5% | Standard discharge after standard charge |
2 | Nominal voltage | 7.4V | Mean operation voltage during standard discharge after standard
charge |
| 3 | Voltage at end of discharge | 5.4V | Discharge cut-off voltage |
| 4 | Charging voltage | 8.4V | |
| 5 | Shipments voltage | | SOC≤30% |
| 6 | Impedance | ≤35 mΩ | |
7 |
Standard charge | Constant current 0.2 C5A Constant voltage8.4V Cut-off current ≤0.02C5A | Under the condition of the ambient temperature of 25±2℃ |
| 8 | Standard discharge | Constant current 0.2 C5A End voltage 5.4V | |
9 |
Maximum Charge Current | Constant current 0.5 C5A Constant voltage 8.4V Cut-off current ≤0.02C5A | |
10 | Maximum discharge Current | Constant current 0.5 C5A End voltage 5.4V | |
| 11 | Maximum continuous charge current | / | |
12 | Operation temperature range | Charge:10~45℃ |
60±25%R.H |
| Discharge: -20~60℃ |
13 | Cycle life | >300cycles | Charging/discharging in the below condition: Charge: standard
charge Discharge: 0.2 C5A to 5.6V Rest time between charge/discharge:30min Until the discharge
capacity <80% of NC |
14 |
Storage temperature | ≤1 month: -20 ~ 45℃ |
60±25%R.H, Best 10~25℃ for long-time storage |
| ≤3 months: -10 ~ 30℃ |
| ≤1 year: 0 ~ 30℃ |
| 15 | Weight | Approx: ≈110g | |
| 16 | Dimension(mm) | / | |
| 17 | output wire length(mm) | Excluding the connector | / |
Certifications:
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
Factory photo:
Contact with our sales team for your OEM and ODM order.
OEM/ODM Service:
If you want to display your own brand logo in products, bags,
labels or anywhere. Or you need to develop battery packs according
to your product orientation. Our OEM and ODM services are ready to
do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
Ryder Electronics established in Shenzhen on July 18, 2005, mainly
in the business of battery packs. In 2009 the company passed
ISO9001 and improved the product quality standard to fulfill the
high-end requirements from our customers.
In 2012, Ryder Electronics moved to a new facility and expend the
production capacity, the Productivity improved nearly 10 times than
before.
In 2013, Ryder Electronics imported ERP (SAP) system to supervise
order execution process.
In 2017, Ryder Electronics expanded the SMT, imported high-speed
patch machine from Germany.
Until now the factory grows into a modern enterprise which
integrated injection molding, PCB designing, SMT and battery pack
assembling services.
In 2018 the company passed ISO14001certification, introduced
automated battery production line to further improve the production
quality and capacity.
